Edit a process map

Add and connect steps, label decisions, organise steps into swimlanes and subprocesses, then check the map for gaps.

Whether Wikidoc drew your map or you started from a blank canvas, you can change every part of it: steps, connecting lines, decisions, lanes and notes. This article covers the canvas. To give a step its owner, time, instructions or a picture, see Add detail to a step. To link documents, checklists and training to a map, see Attach files, checklists, training and people.

The toolbar on the left of the canvas holds the shapes. To add one, click it and then click where it should go on the canvas, or drag it onto the canvas.

  • Rectangle, Circle and Decision (a diamond) are at the top. Click ⋮ for more shapes, such as Document, Database, Delay and Manual Input.
  • Apps adds a step done in an app, such as Gmail or Slack, with the app’s logo. Image adds a picture. See Add detail to a step.
  • A new step is called New Step. Click it to rename it.
  • To connect two steps, drag from one of the small dots on the edge of a step to another step.

To remove a step or a line, click it and press Delete or Backspace. Undo and redo are at the bottom left of the canvas.

Click a step. A toolbar opens above the canvas:

  • Shape: change what kind of shape it is.
  • The step’s text.
  • Text and fill colours: choose a colour, or type a hex code.
  • +: add a badge, such as Manual, Automated, Review, Approval, System or Critical.
  • Duration, Owner, App, Details and Image: how long the step takes, who does it, the app it’s done in, written instructions and a picture. See Add detail to a step.
  • Task: turn the step into a task on a task board, for work the process still needs.

Double-click a step to open the Step panel, with everything about it in one place.

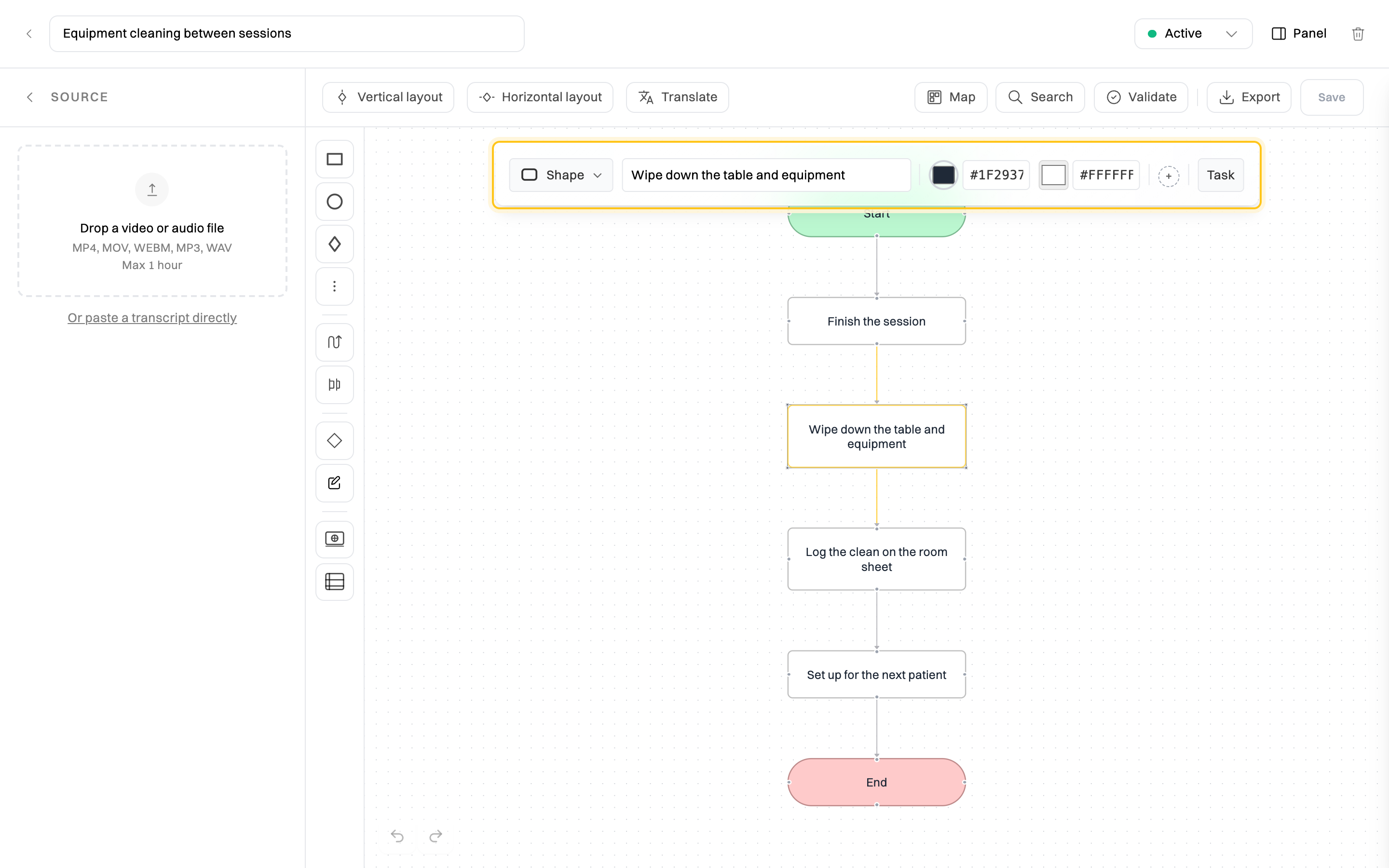

The process map editor with step 2, Wipe down the table and equipment, selected, and the toolbar above the canvas highlighted: Shape, the step's text, text colour, a + button for badges, Duration, Owner, App, Details, Image and Task
Click a step to change its shape, text and colours, and to add detail to it.

To change several steps at once, hold Shift and click each one. The button below the connection style lines up the selected steps (left, centre, right, top or bottom).

Double-click a line to change it. You can choose its colour, make it dashed, dotted or animated, or give it text, such as Yes or No after a decision. Type the text and click Apply. Delete removes the line.

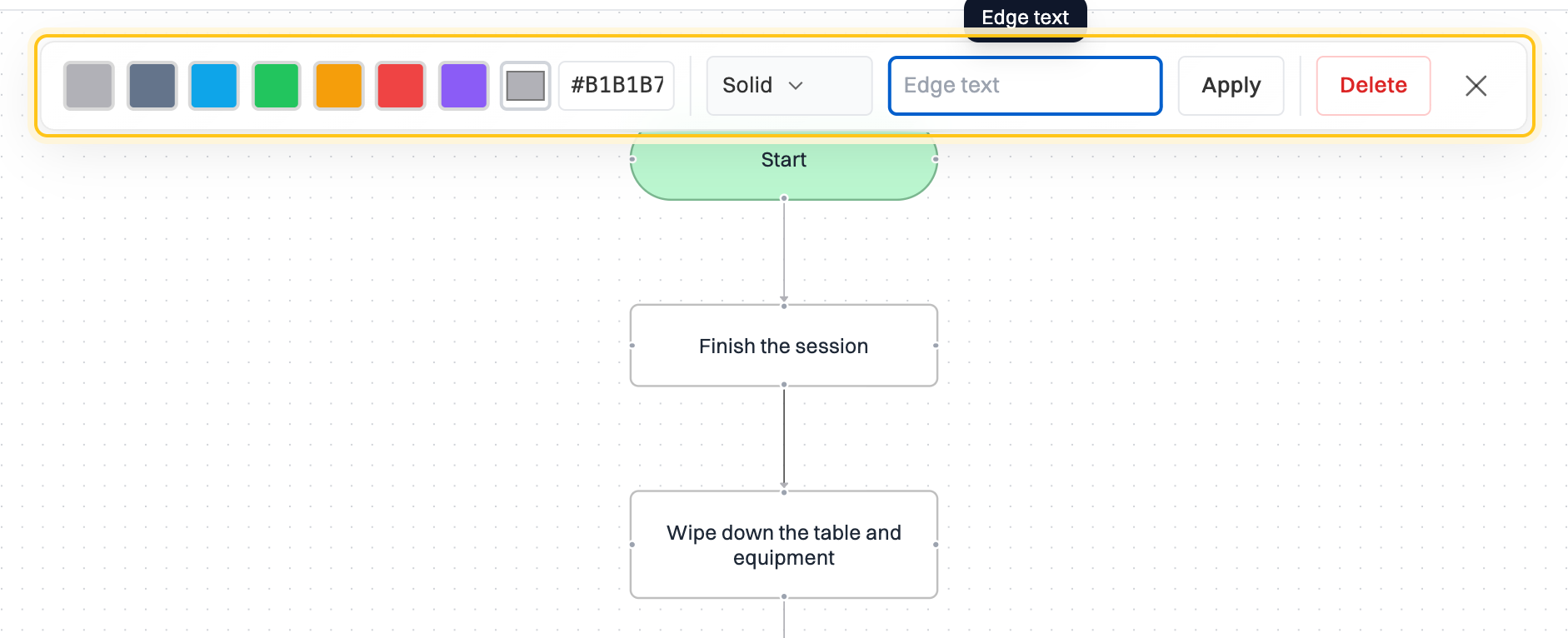

The line editor above the canvas: eight colour swatches, a hex code field showing #B1B1B7, a Solid style menu, an Edge text box, Apply, Delete and a close button
Double-click a line to label it or change its style.

To change how every line is drawn, straight, stepped or with rounded corners, use the connection style button in the left toolbar.

Use a Decision diamond where the process asks a question, and label each line out of it with an answer.

For processes where work splits and joins, the gateway button in the left toolbar has four gateways. Drag one onto the canvas:

Gateway Means
XOR Exactly one of the paths out of it is followed.
AND All the paths out of it happen, side by side.
OR One or more of the paths out of it happen.
MERGE Separate paths come back together here.

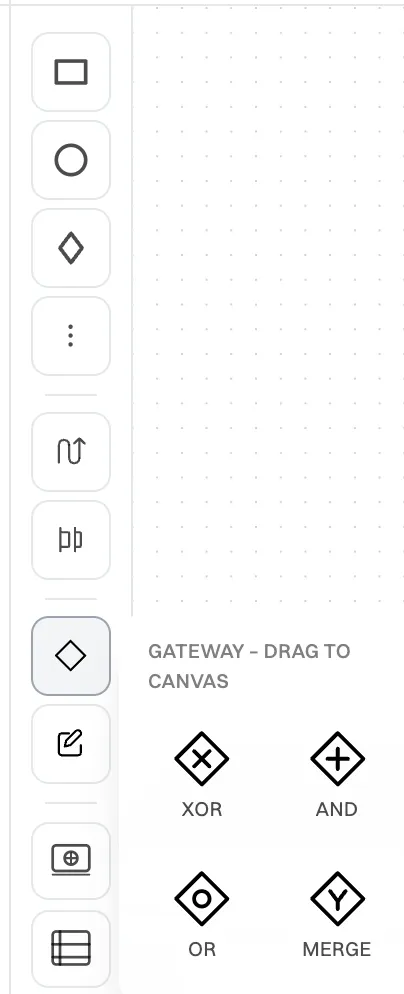

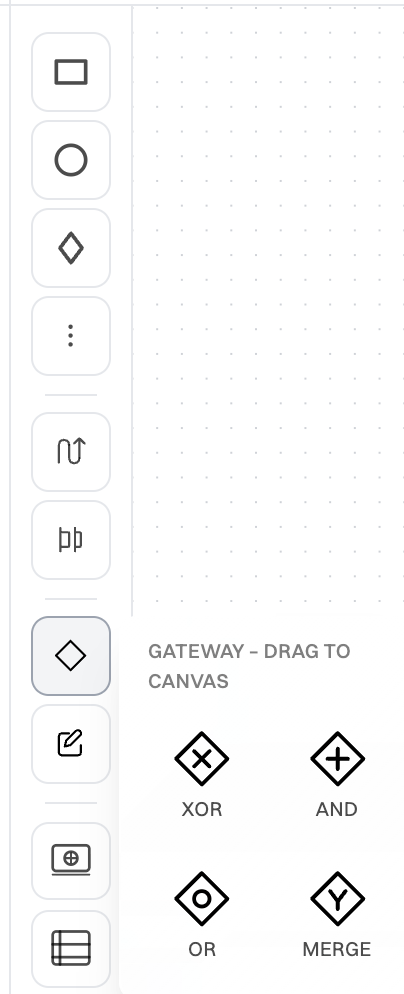

The left toolbar with the gateway menu open: Gateway – drag to canvas, with XOR, AND, OR and MERGE
Drag a gateway onto the canvas.

A swimlane gives each role or team its own band, so you can see who does each step. Maps Wikidoc draws from a description get one automatically when more than one role is involved.

  1. To add one, drag the swimlane button (the last one in the left toolbar) onto the canvas.
  2. To change its lanes, click the swimlane’s lane labels, then Edit Lanes. Rename a lane, change its colours, remove it with ×, or click + Add Lane. H switches the lanes between horizontal and vertical.
  3. Drag each step into the lane of whoever does it.

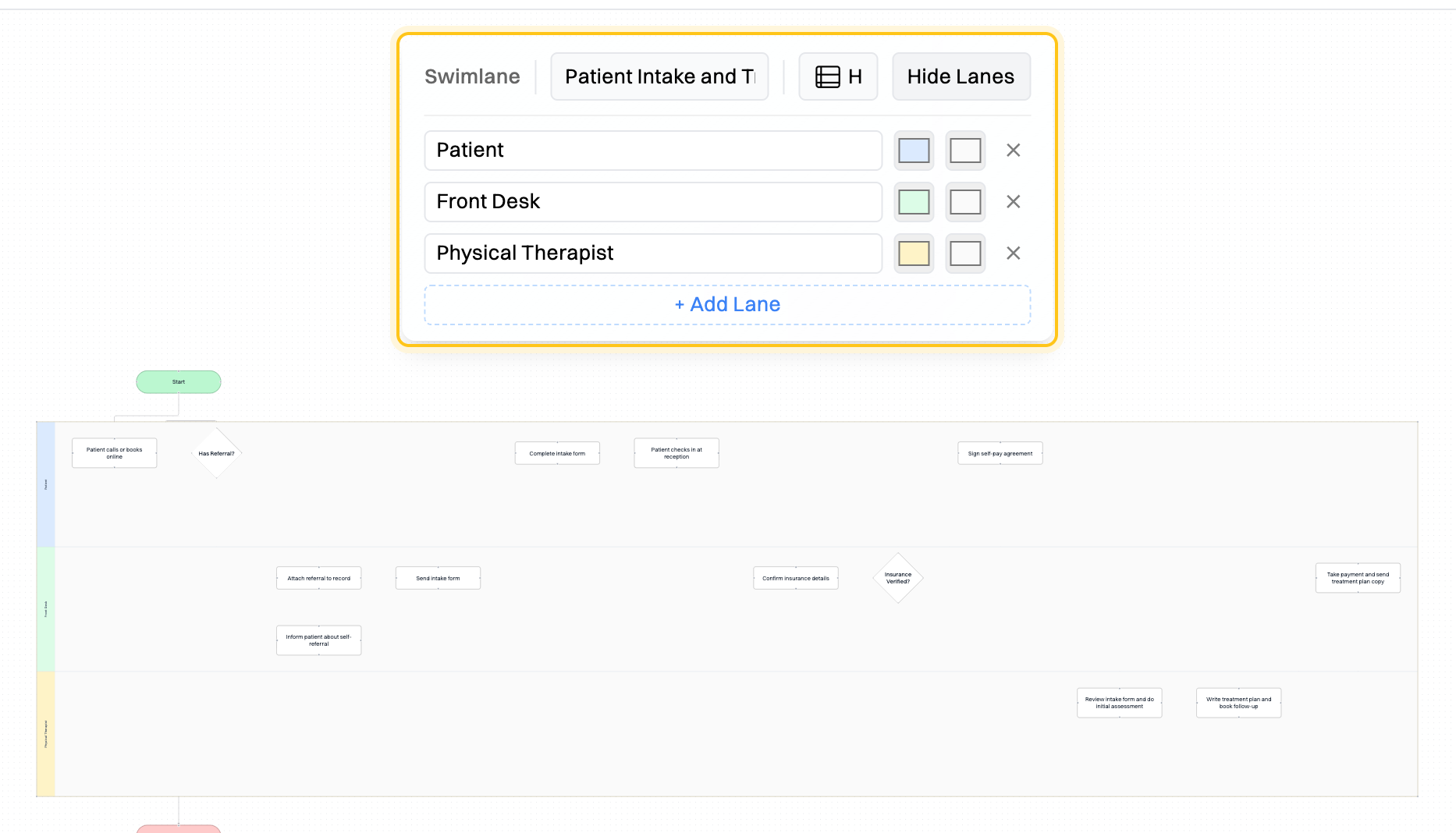

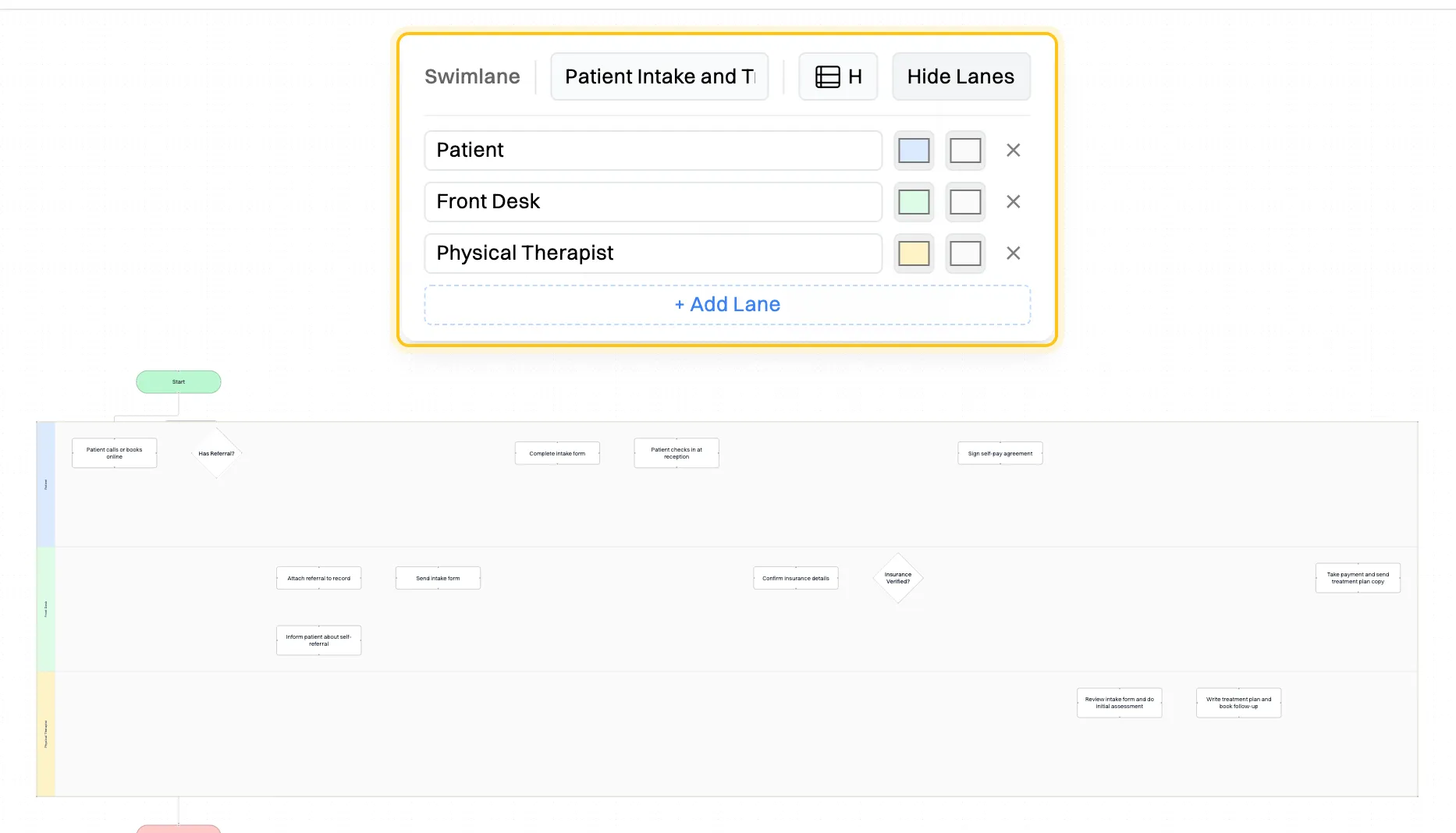

The New patient intake map with its swimlane selected and Edit Lanes open: lanes named Patient, Front Desk and Physical Therapist, each with two colour swatches and a remove button, and + Add Lane
Each lane is a role or team.
  • Subprocess: when a step is a whole process of its own, drag a subprocess onto the canvas and name it. Click its ⊕ button to open it as a map of its own, and draw the detail there. The name at the top of the page shows where you are; click the map above it to go back. Subprocesses don’t count towards the three process maps on the Free plan.
  • Sticky note: drag a sticky note onto the canvas for a comment that isn’t a step.
  • Vertical layout and Horizontal layout rearrange the whole map, top to bottom or left to right.
  • Lanes by owner gives each step’s owner a lane of their own. It appears once a step has an owner.
  • Numbers shows or hides the step numbers: 1, 2, 3, with letters on the branches after a decision.
  • Map shows a small overview of a large map. Double-click an empty part of the canvas to fit the whole map on screen.
  • Search finds a step by its text, its details, its owner or its app.
  • Translate translates every step’s text and details into another language. Save the map to keep the translation.

On a smaller screen, some of these buttons show only their icon. Hover over one to see what it is.

Click Validate. Wikidoc lists anything that looks wrong:

  • A step with no lines to or from it.
  • A decision or gateway with no way out, or only one.
  • A step that can’t be reached from Start.
  • No End.
  • A step whose owner has left your organisation, or whose department has been deleted. Click Reassign → to choose someone else.

Click Go → next to an item to jump to that step.

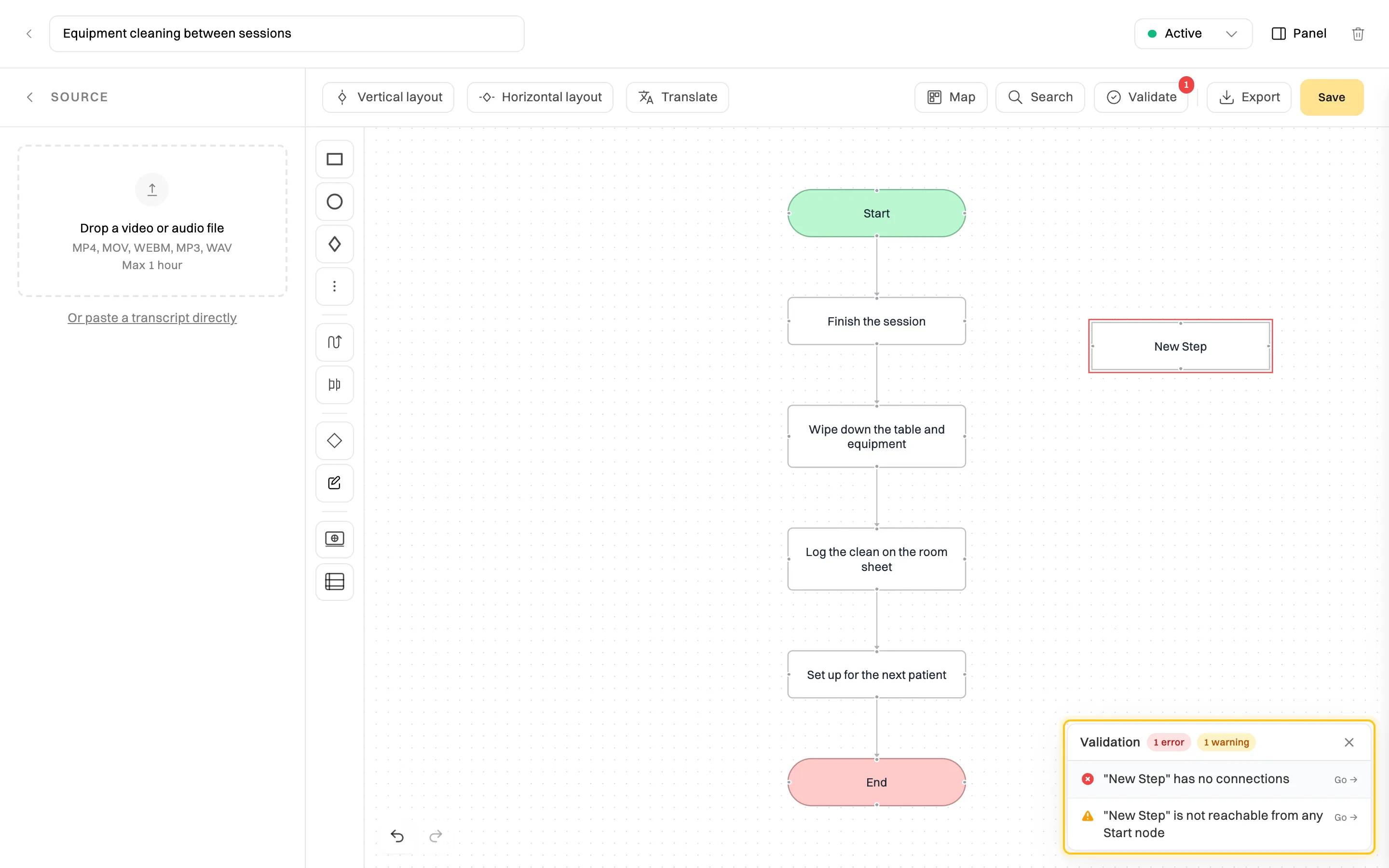

The Equipment cleaning between sessions map with an unconnected New Step outlined in red, and the Validation panel highlighted: 1 error, New Step has no connections, and 1 warning, New Step is not reachable from any Start node
Validate finds steps that aren't connected to the rest of the process.

Click Save, or press ⌘S (Ctrl+S on Windows). The button turns yellow when you have unsaved changes. On the Pro and Team plans, every save is kept as a version in the map’s Versions tab (click Panel).

If the map had been approved, saving a change means it needs approving again.
