Create a process map

Generate a flowchart from documents, recordings or a written description, or draw one yourself.

A process map shows a whole process as a flowchart: each step, who does it, and where the process branches. The quickest way to make one is to describe the process out loud or in writing, and let Wikidoc draw it.

  1. Click Process in the sidebar, then + New process map.

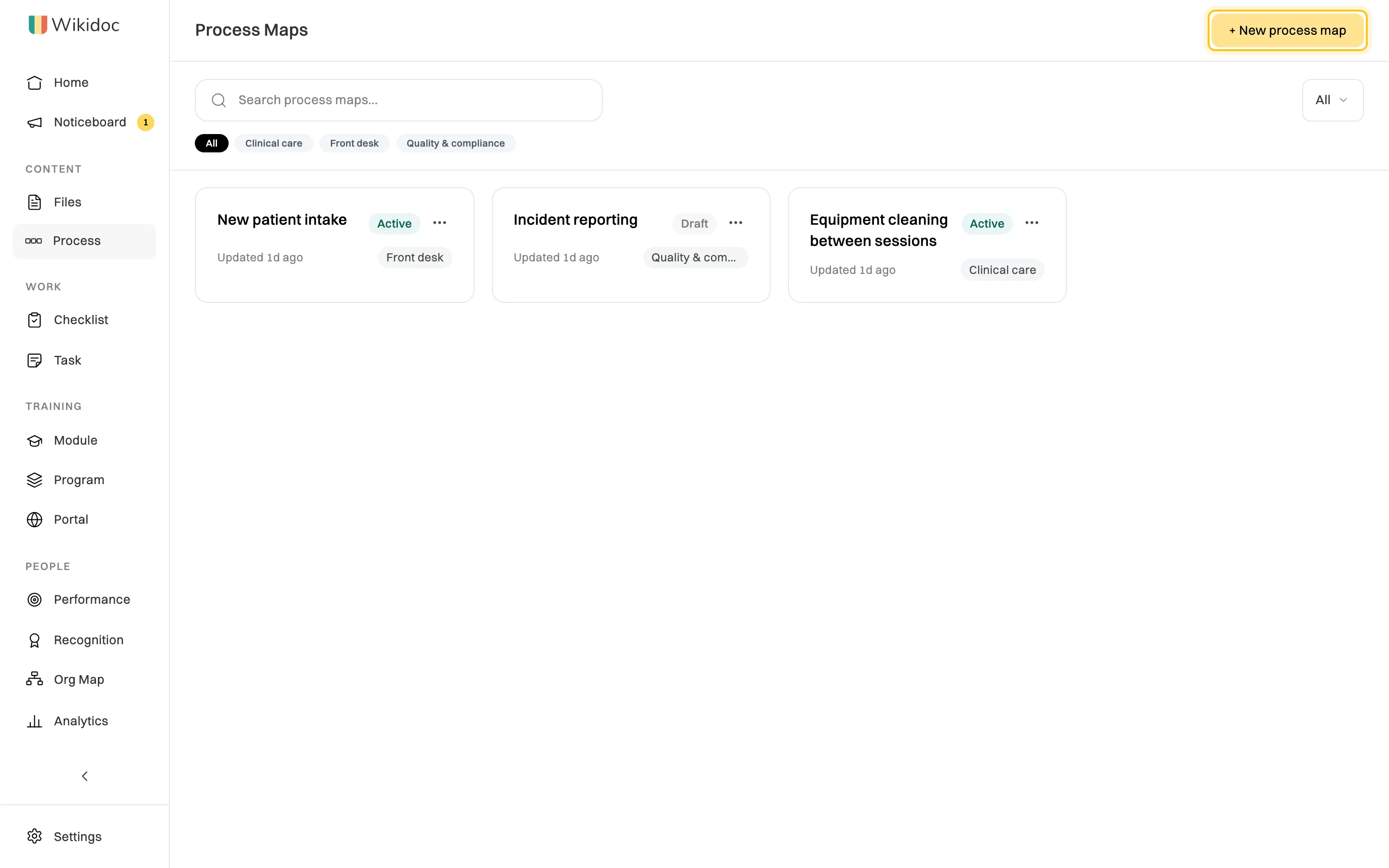

    The Process Maps page: a search box, category filters, three process map cards marked Draft or Active, and the + New process map button highlighted
    Your organisation's process maps, with their status and category.

    A new map called Untitled Process Map opens. You can name it now by clicking the name at the top, or leave it: when you generate the map, Wikidoc names it after the process.

  2. Add what the process is described in, in the Sources panel on the left. Drop files on the panel, or click it to choose them:

    • A document: a written procedure, a checklist or a slide deck. PDF, Word, PowerPoint, Excel, CSV or a WebP image.
    • A recording of someone explaining the process: MP4, MOV, WebM, MP3, M4A or WAV. Wikidoc transcribes it. A long recording can take several minutes, and it carries on if you leave the page.
    • A description. Click Paste text, and paste or type how the process works.

    On the Free plan a map takes one file, and a recording can be up to 10 minutes. On Pro and Team a map takes up to five files, and a recording up to 30 minutes. A map can have only one audio or video file. Where a document and a recording disagree, the map follows the document.

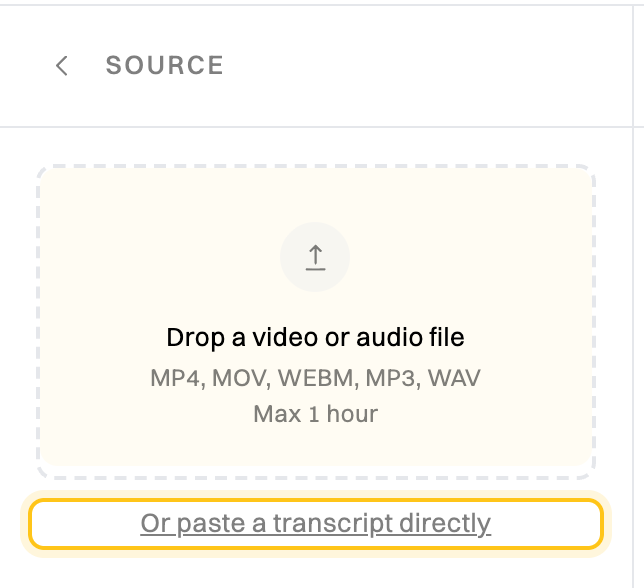

    The Sources panel: a drop area for documents, audio and video, and the Paste text button highlighted
    Add a document or a recording, or write the process down.

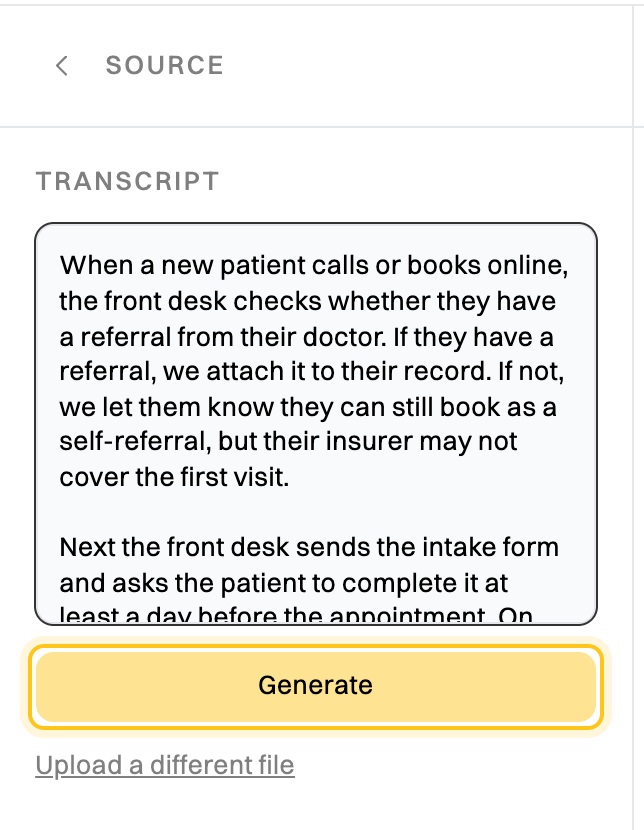

    The Sources panel with the Paste text box open, holding a description of a new patient intake process, and the Add text button highlighted
    Paste or type a description, then click Add text.
  3. Click a file to check the text read from it, correct anything that’s wrong, and click Generate. Generating usually takes under a minute.

Wikidoc draws the map. When more than one role is involved, each role gets its own lane, and every decision (“Has referral?”) becomes a diamond with a labelled branch for each answer.

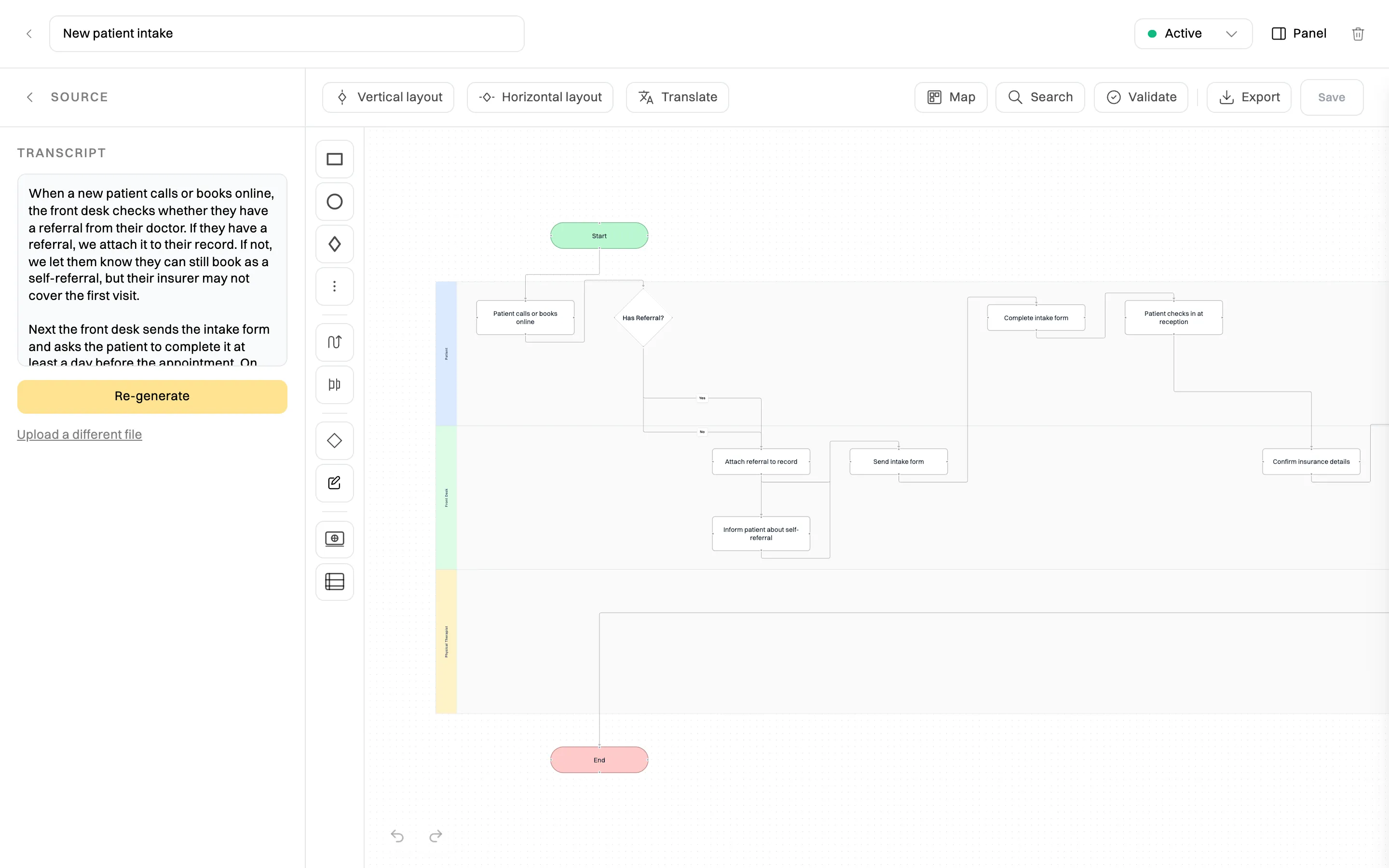

A generated process map for New patient intake: Start, then three lanes for Patient, Front Desk and Physical Therapist, with steps such as Patient calls or books online, a Has Referral? decision with Yes and No branches, Attach referral to record and Send intake form
Each role gets its own lane, and each decision its own branches.

The new map is saved as a Draft. When it’s ready for your team, change its status to Active with the menu next to its name.

Wikidoc numbers the steps in the order they happen. It doesn’t add owners, durations or instructions to the steps: you add those. See Add detail to a step.

  • Say who does each step: “the front desk sends the form”, not “the form is sent”.
  • Say what happens at each decision, for every answer: “If they have a referral, we attach it. If not, we tell them…”
  • Keep to the order it happens in, from the first thing to the last.
  • One process per map. If a step is a whole process of its own, map it separately.

You don’t have to generate a map. On a new map, drag shapes from the toolbar onto the canvas: steps, decisions, sticky notes, subprocesses and swimlanes. Drag from the edge of one shape to another to connect them.

A generated map is saved as soon as it appears. After that, your edits are saved when you click Save, or press ⌘S (Ctrl+S on Windows). If you try to leave with unsaved changes, Wikidoc asks whether to save them.

To start again from your sources, click Re-generate. Wikidoc first lists what will be replaced, such as the steps and their connections, and any pictures, owners, durations and details you’ve added. The map’s title, sources, attachments, comments and version history are kept.

The Replace this map? window: Re-generating draws a new map from your sources and replaces the current one. This replaces: 13 steps and 16 connections, with their layout, colours and labels, and 1 swimlane. Kept: the map's title, sources, attachments, comments and version history. The current map is saved as a version first, so you can restore it from Versions. Cancel and Re-generate buttons
Wikidoc says what will be replaced before it re-generates the map.

Click Re-generate to go ahead. The current map is saved as a version first. If you have unsaved changes, the button reads Save and re-generate, and your changes go into that copy. On Pro and Team, click Restore under the button afterwards to open the map’s Versions tab and bring the old map back. On the Free plan the copy is kept, and you can restore it if you upgrade.

If the map was approved, or waiting for approval, the new map needs approving again.

Everyone in your organisation can open a process map. Only the person who created it, and Admins, can edit it.

If you signed up with a personal email address and haven’t joined an organisation, your process maps are in your own private space, and only you can see them.

“Process map quota reached (3 on free plan)…” You have three process maps on the Free plan. Delete one you no longer need, or upgrade to Pro.

“No speech detected”. The recording has no speech Wikidoc can hear. Try another file, or type the description instead.

“Only one audio or video file per process map”. Remove the recording that’s there first, or make a separate map.

A file marked “Couldn’t be read”. Remove the file with the bin icon and add it again. If it fails again, save it in another format (PDF for a document, MP3 or MP4 for a recording).

“Editor role or above required”. Viewers can open process maps but can’t create them. Ask an Admin for the Editor role.
